Tray and liner systems
The heart of Medstor systems
ORGANISATION - IDENTIFICATION - TRANSPORTATION
Liner systems
The Backbone of Efficient Healthcare Storage
At the heart of every Medstor cabinet, shelving unit, and cart is our intelligently engineered tray and liner system. Designed to maximise storage capacity and improve organisation, Medstor liner systems give healthcare teams complete visibility and control over their inventory - ensuring products are stored correctly, accessed quickly, and easy to manage in even the busiest clinical environments.

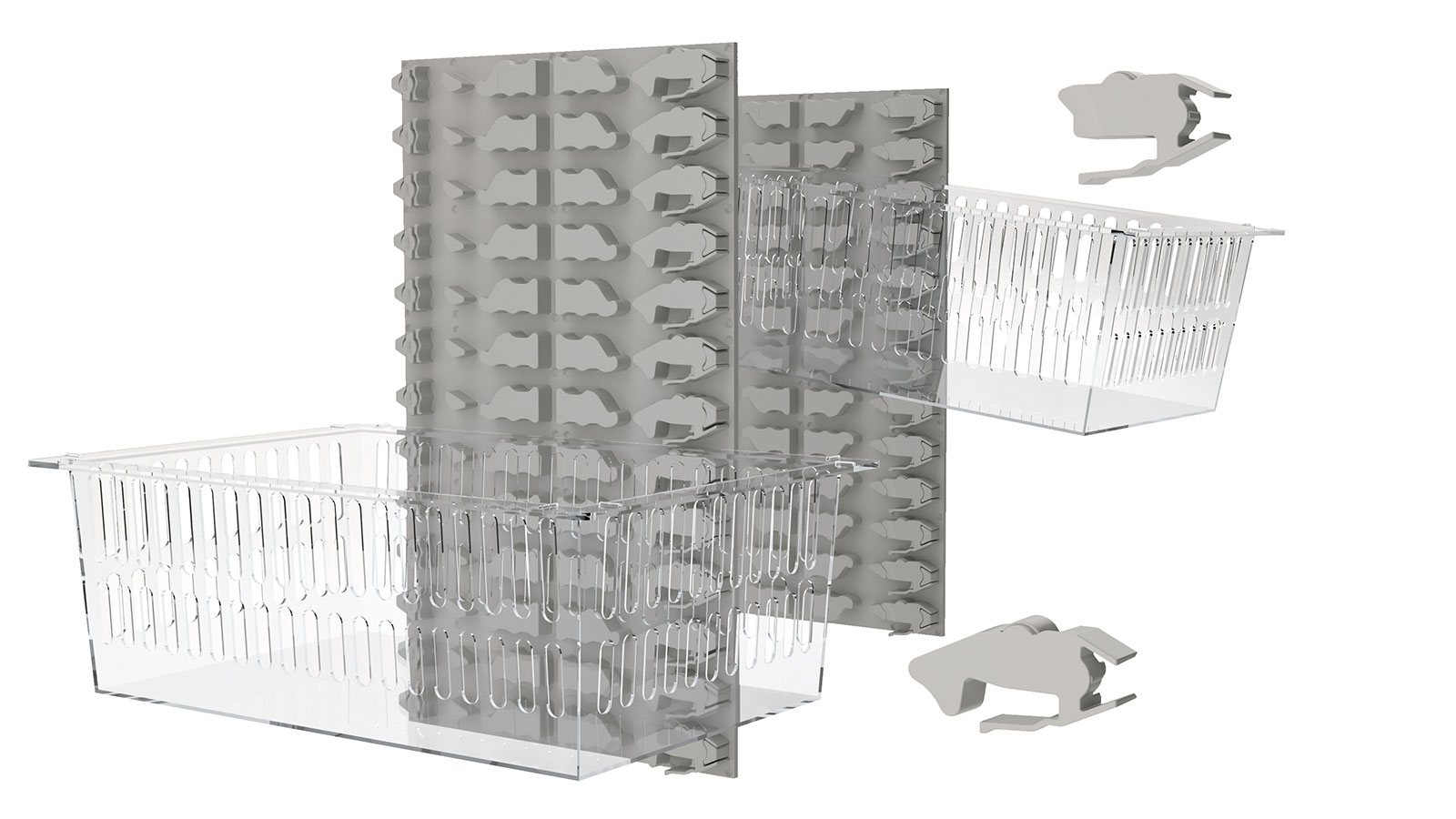

XTRAGLIDE liner
Horizontal and 25° angled configuration with smooth, easy‑glide action and positive stop function.
The Xtraglide free‑running wheel allows fully loaded Medstor trays to be removed smoothly and quietly, requiring minimal effort from the user.
Key product features
Trays can be easily transferred between any Medstor liner storage system units.
From specialised dividers and removable inserts to labelling solutions and workflow accessories, these options allow each Medstor system to be tailored to the specific requirements of individual hospital areas, delivering a fully optimised, intuitive storage environment.

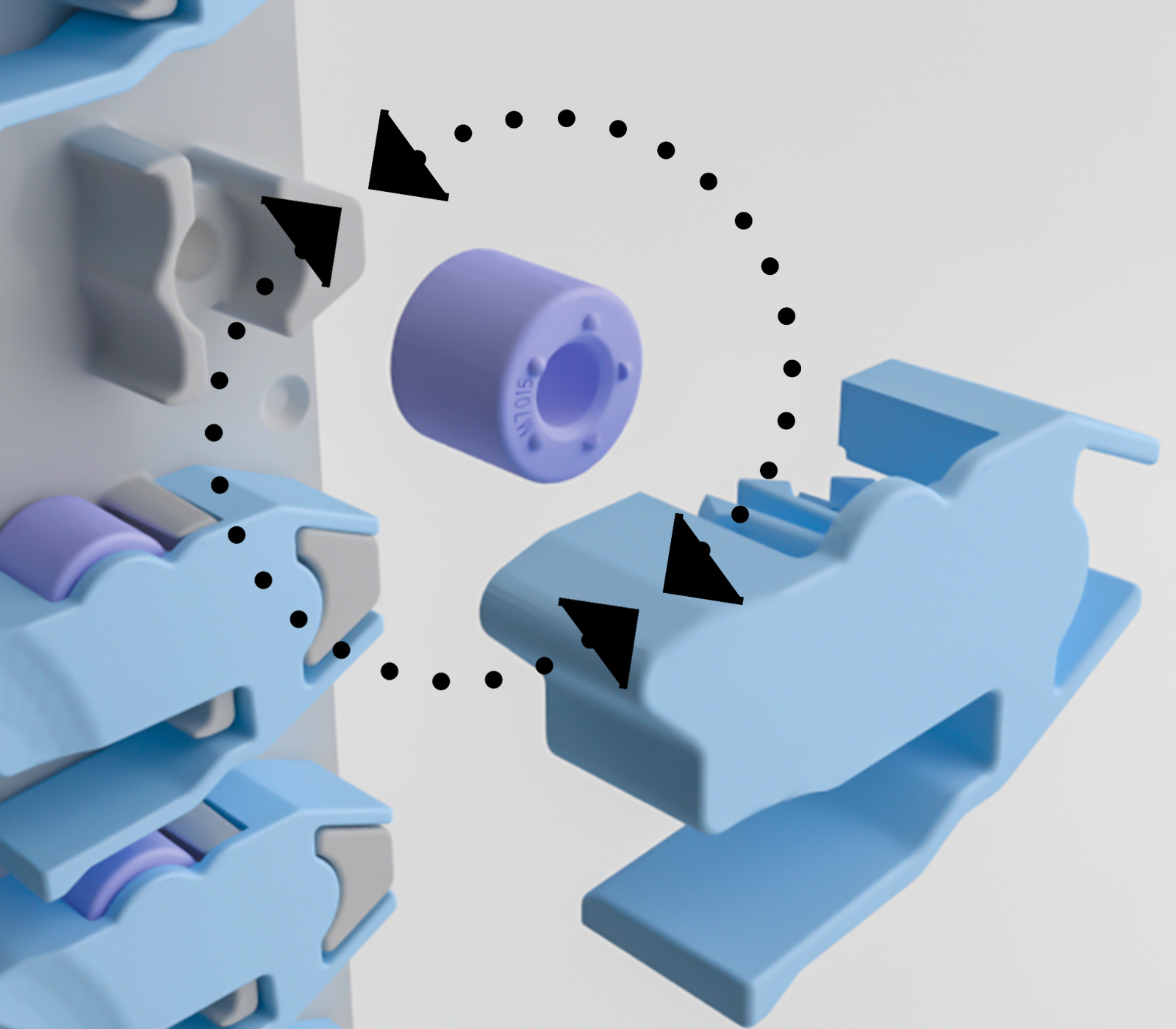

WHEELED LINER AND ARRESTER SYSTEM
Featuring the Xtraglide free‑running wheel, fully loaded Medstor trays can be removed smoothly, quietly, and with minimal effort.

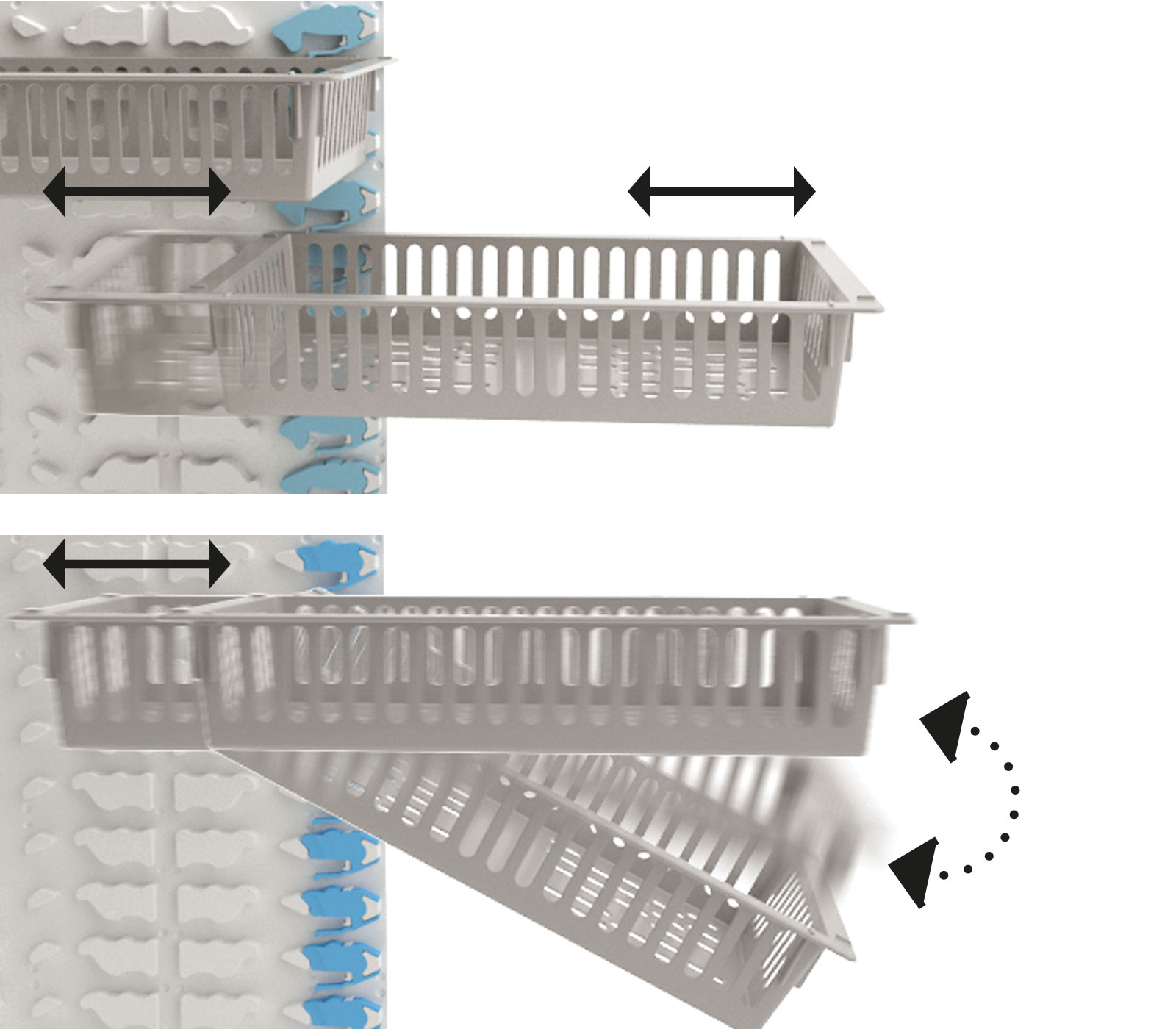

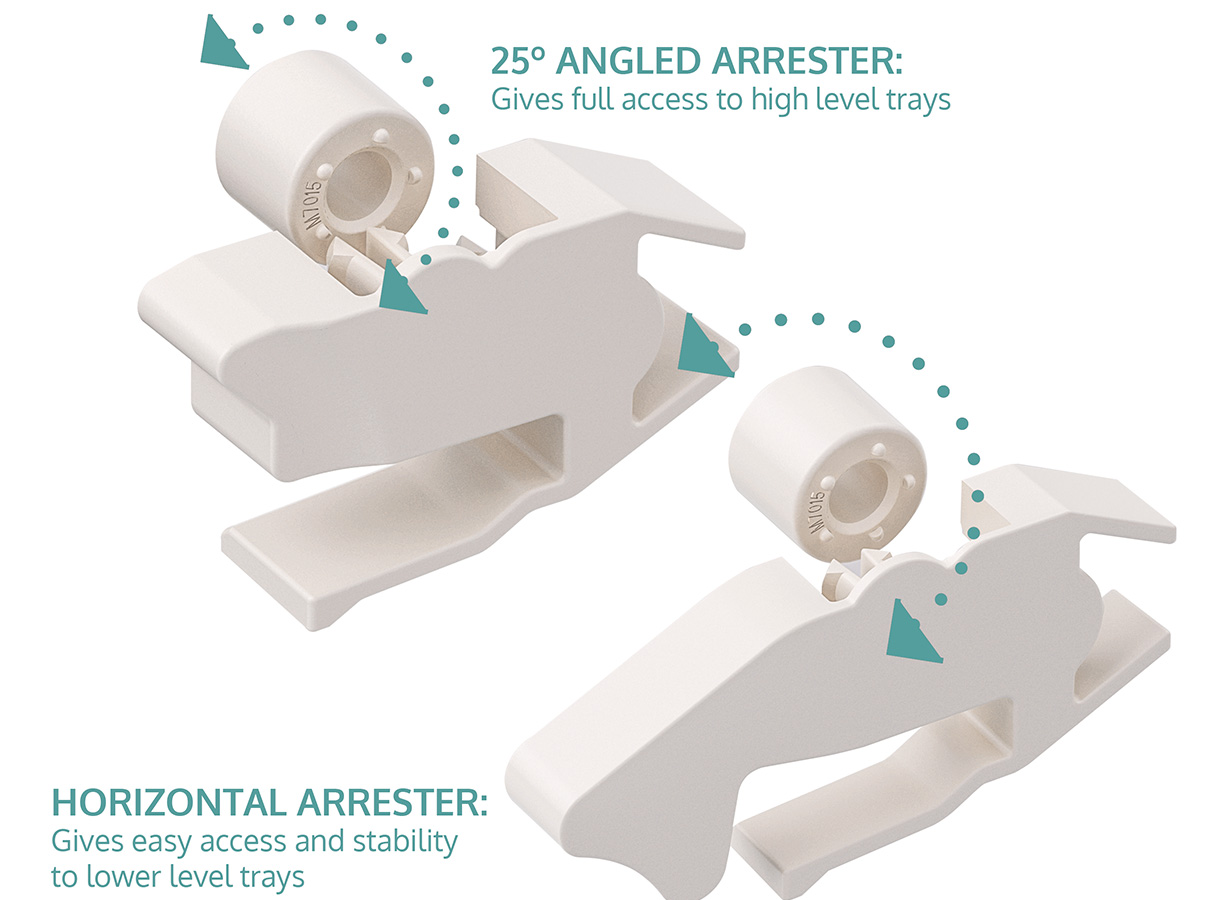

HORIZONTAL OR 25° ANGLED TRAYS
Xtraglide arresters can be fitted to Medstor DUAL FIT liners, allowing products to be withdrawn with trays held in either a horizontal or 25° angled finished position.
POSITIVE STOP
When fully extended, the tray is completely secured and product is easily accessible. A simple lift to override the positive arrest gives complete tray removal.
Shhh… NOISE REDUCTION
Our new liner with wheeled arresters operates so quietly that it is ideal for use in close proximity to patient areas.

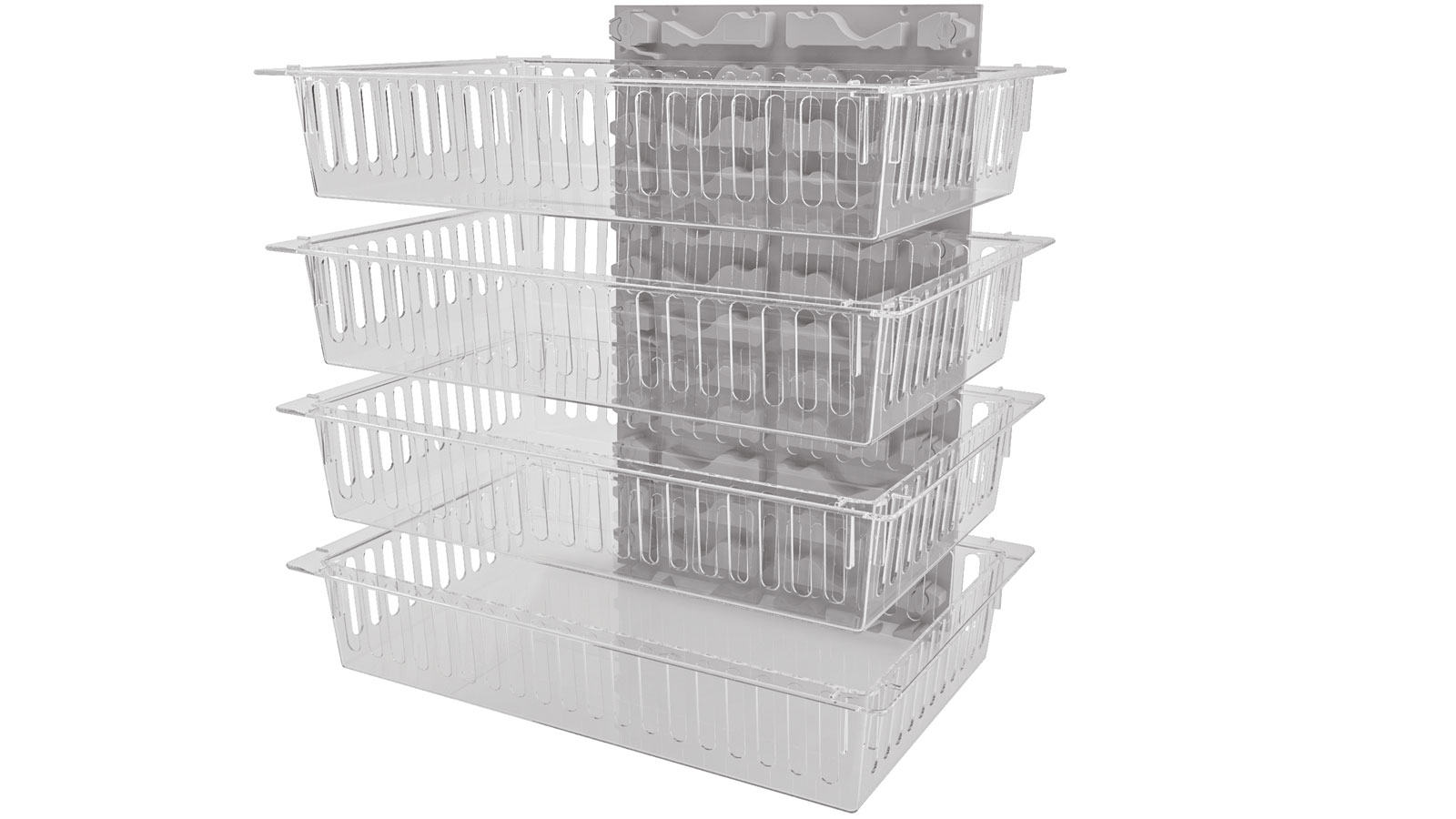

Ergonomic liner
No-tool, push-fit dual-function arresters are both horizontal and 25° angled configurations, providing flexibility to suit a wide range of installation requirements.
Medstor liners when fitted with push-in arresters are designed for quick and simple installation without the need for additional tools.
Medstor liners and arresters deliver reliable and secure retention, offering strong mechanical performance. Supporting loads of up to 25.5 kg.
Key product features
Trays can be seamlessly transferred across all Medstor liner storage system units, including those fitted with the ergonomic liner.
A wide range of options from specialised dividers and removable inserts to labelling solutions and workflow accessories - allows each Medstor system to be precisely configured to the needs of individual hospital areas. The result is a fully optimised, intuitive storage environment that supports efficient, ergonomic clinical workflows.

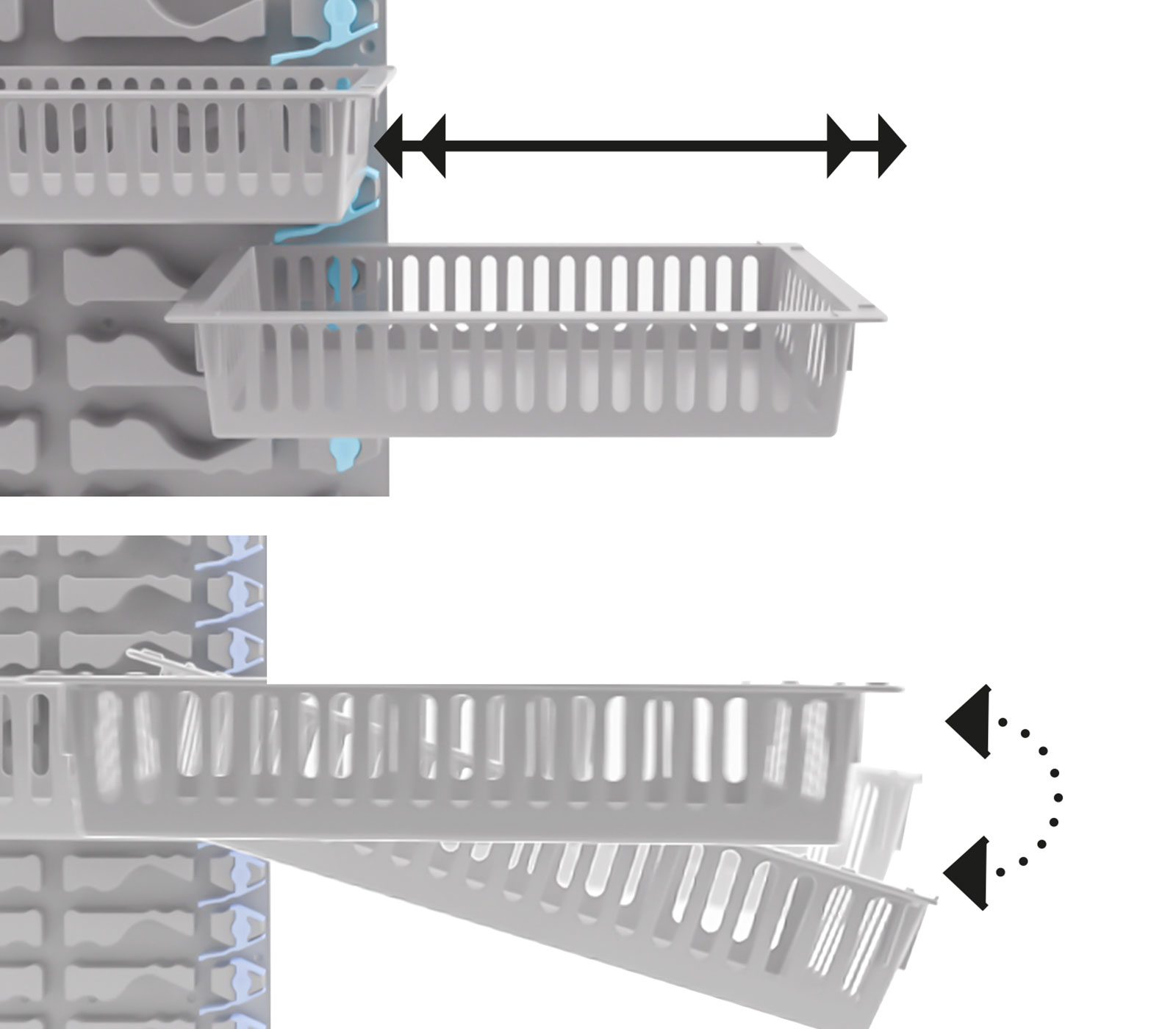

LINER AND ARRESTER SYSTEM
The original positive stop with tilt arrester can be utilised to angle top trays at 25° for high level stock and to the base for horizontal tray withdrawal.

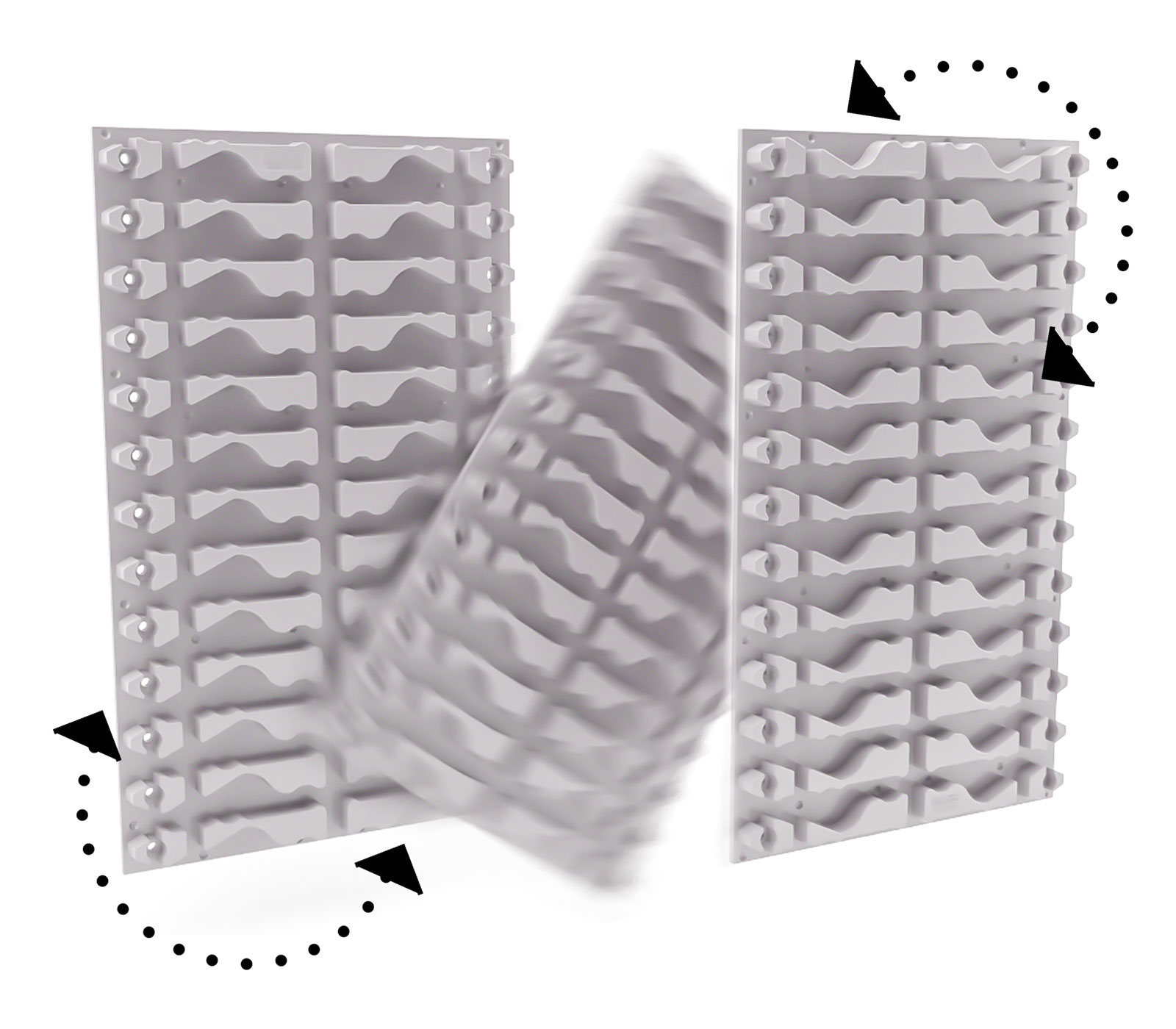

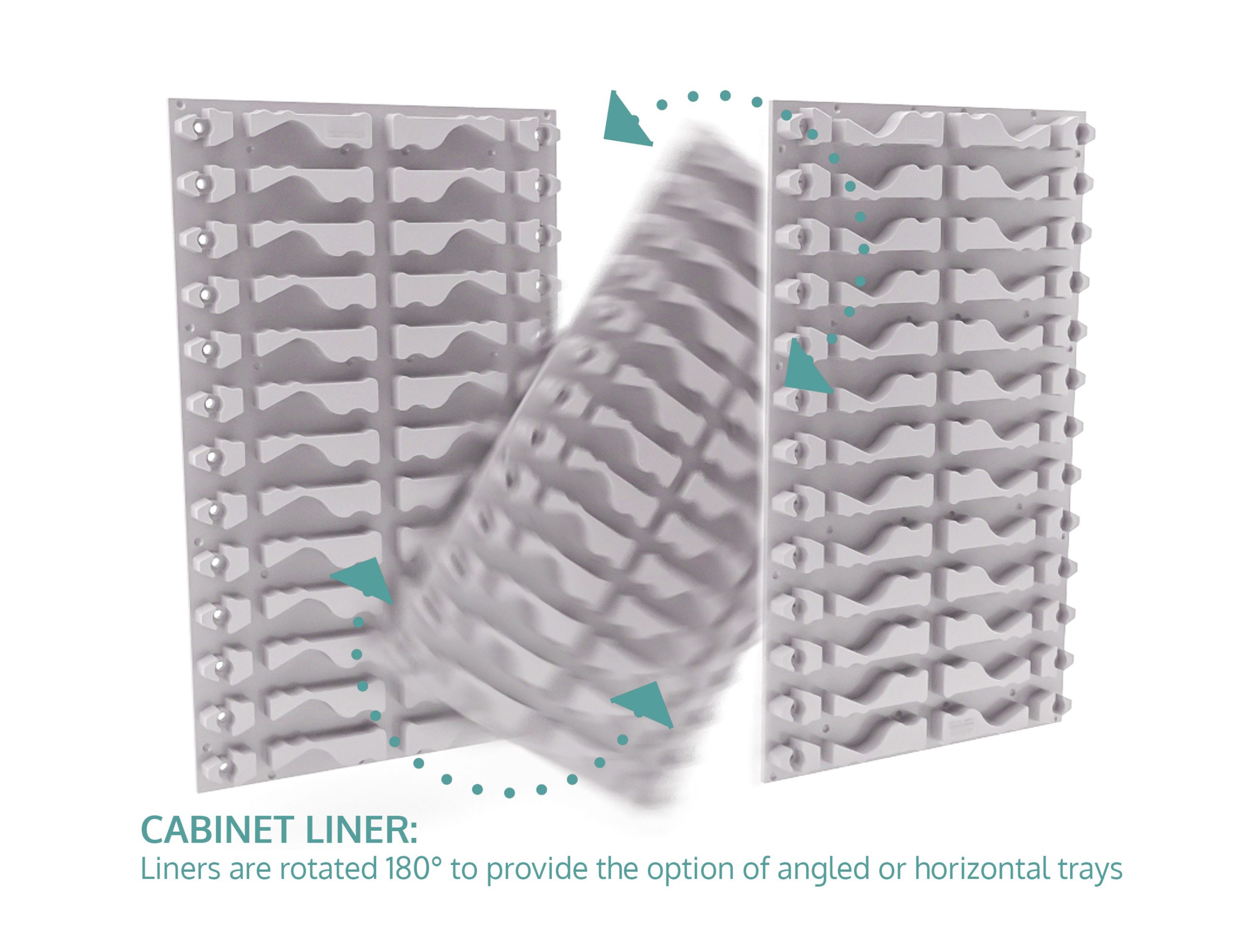

CABINET LINER
The liners can be rotated through 180°, providing the flexibility of either angled or horizontal tray withdrawal within a single high‑impact liner design.

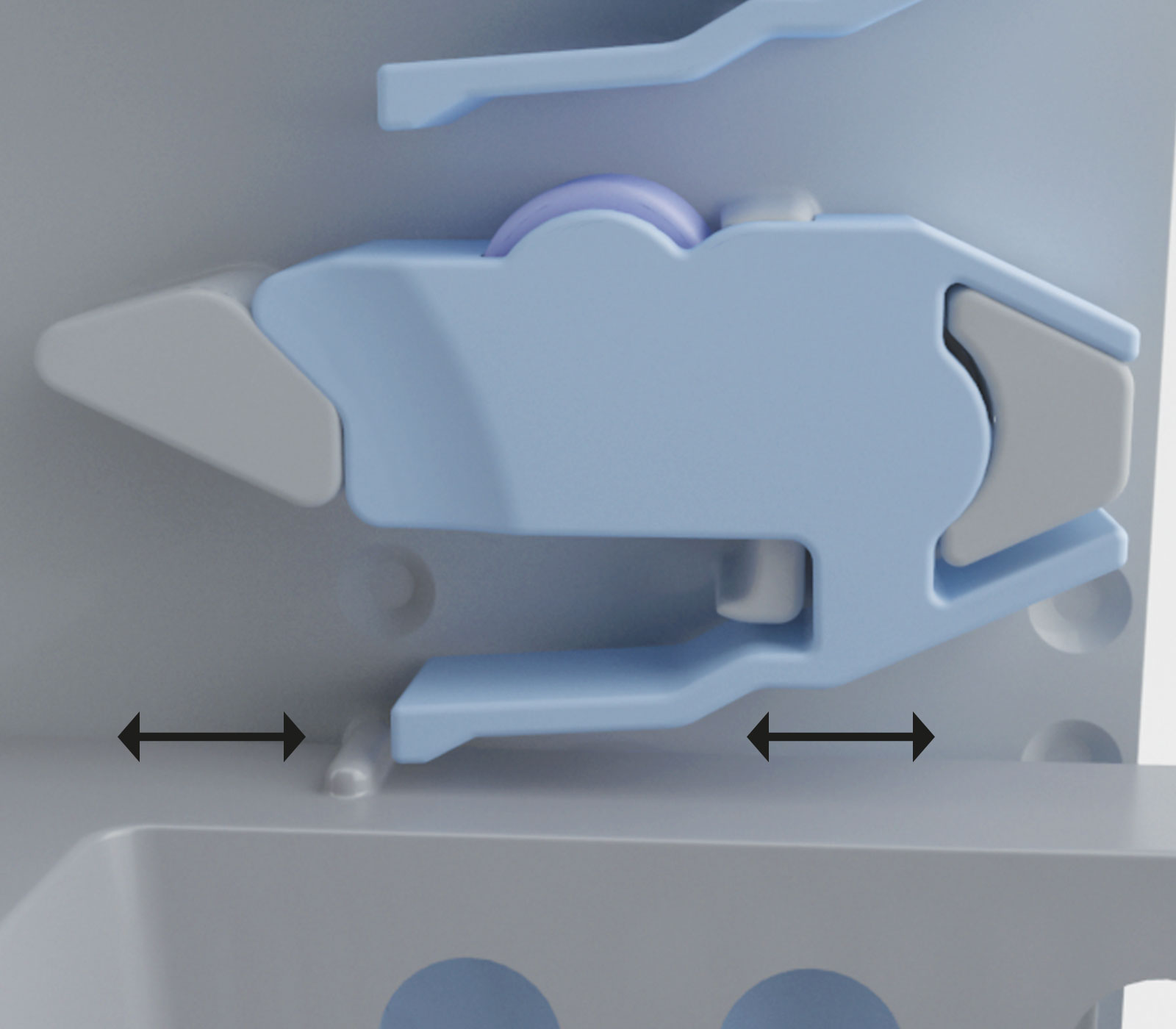

POSITIVE STOP
Fully extended trays are securely supported, providing safe and unobstructed access to tray contents

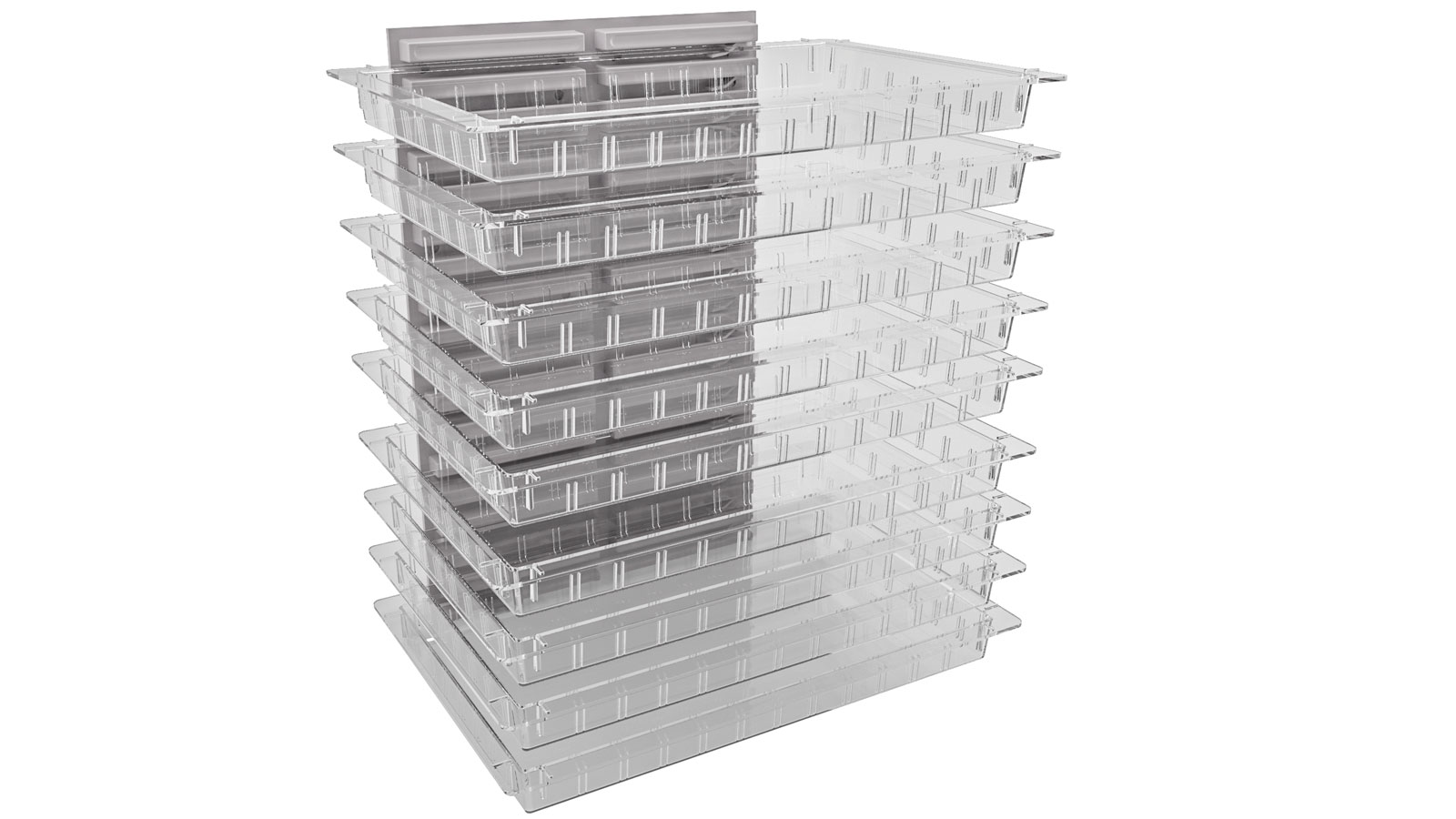

High density liner
High density Storage with Fixed Arrester Support.
Designed for maximum space utilisation, Medstor high‑density liners feature horizontal runners and horizontal tray positioning for efficient, organised storage.
The fixed arrester system provides secure tray support, accommodating loads of up to 35 kg. Configurations are available across all Medstor HTM 71 cabinets, module carts, and procedure trolleys, offering a robust solution for high‑volume environments.
Key product features
Maximum Capacity Storage with High‑Density Fixed Arresters
By combining horizontal runners with horizontal tray positioning, the system allows storage capacity to be increased within the same cabinet footprint. The system is built to handle heavier products while maintaining consistent performance and reliability.

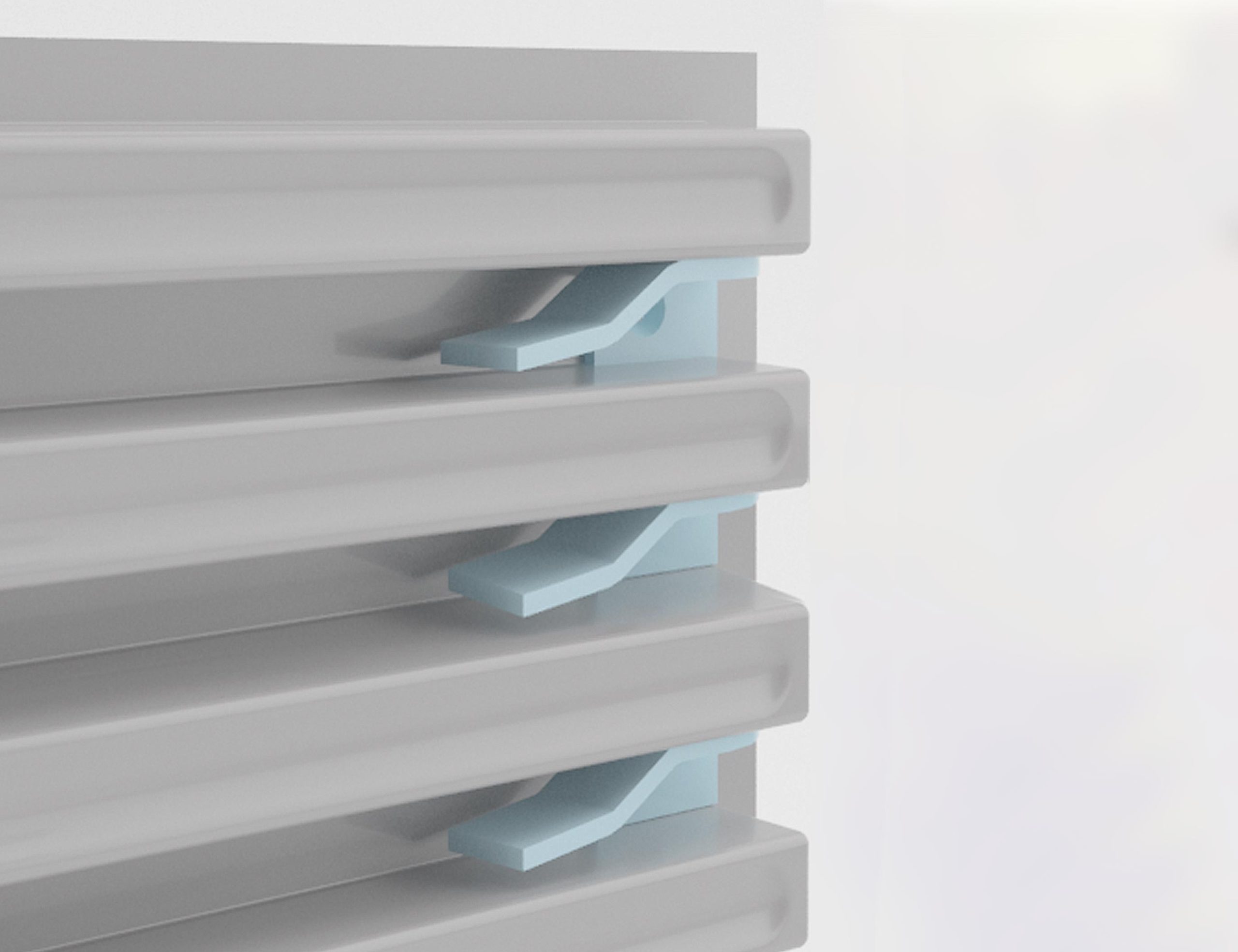

LINER & ARRESTER
Smooth‑glide tray withdrawal delivers effortless access to contents, even in high‑use clinical environments.

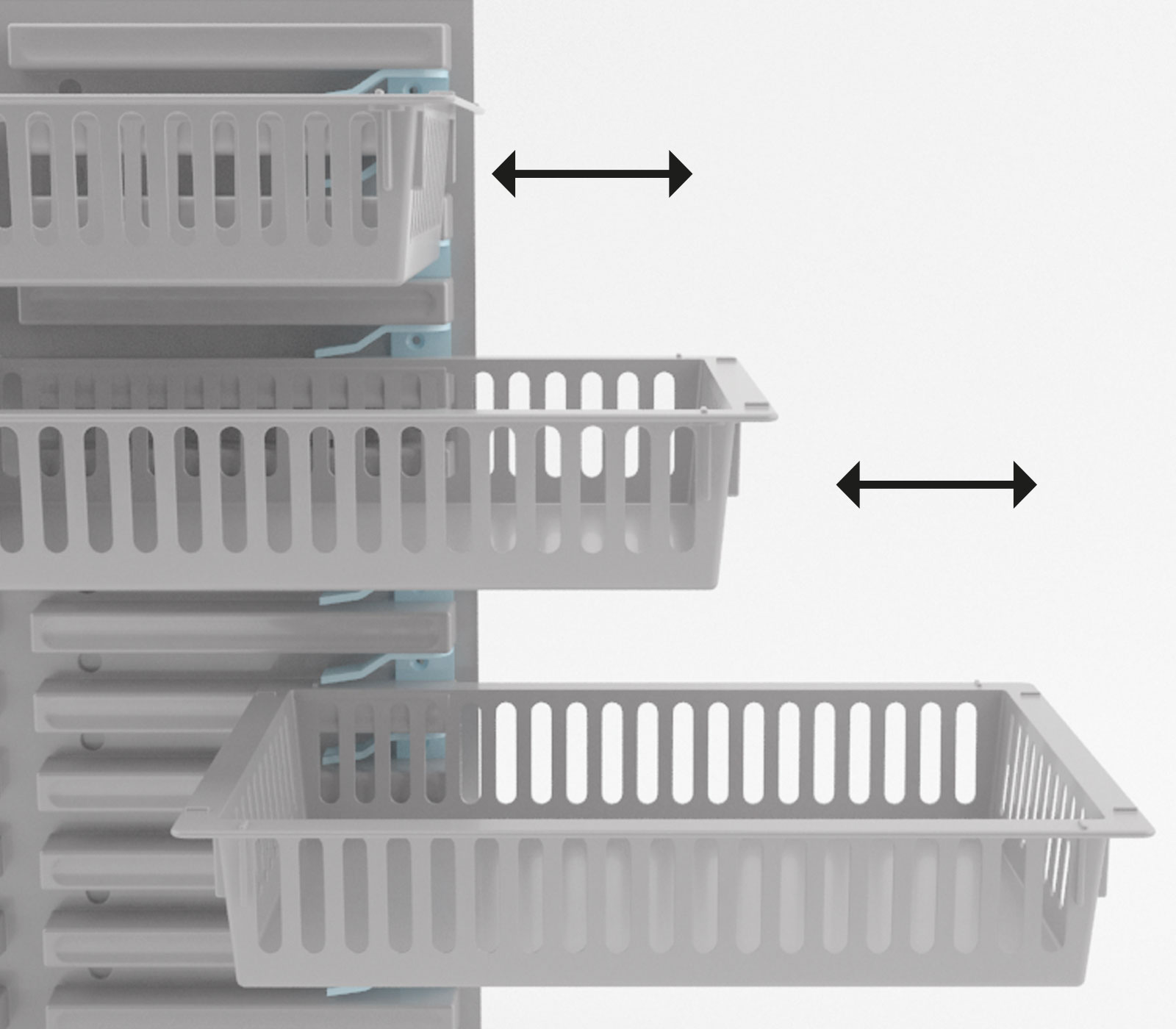

HORIZONTAL LINER
With continuous support to keep trays straight and stable, the horizontal liner eliminates drop.

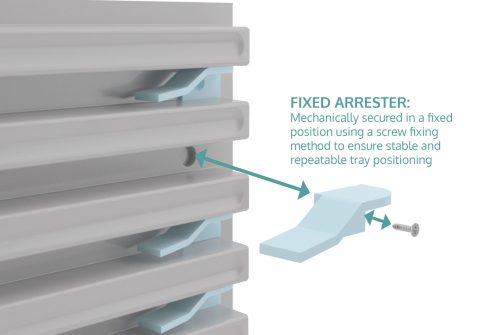

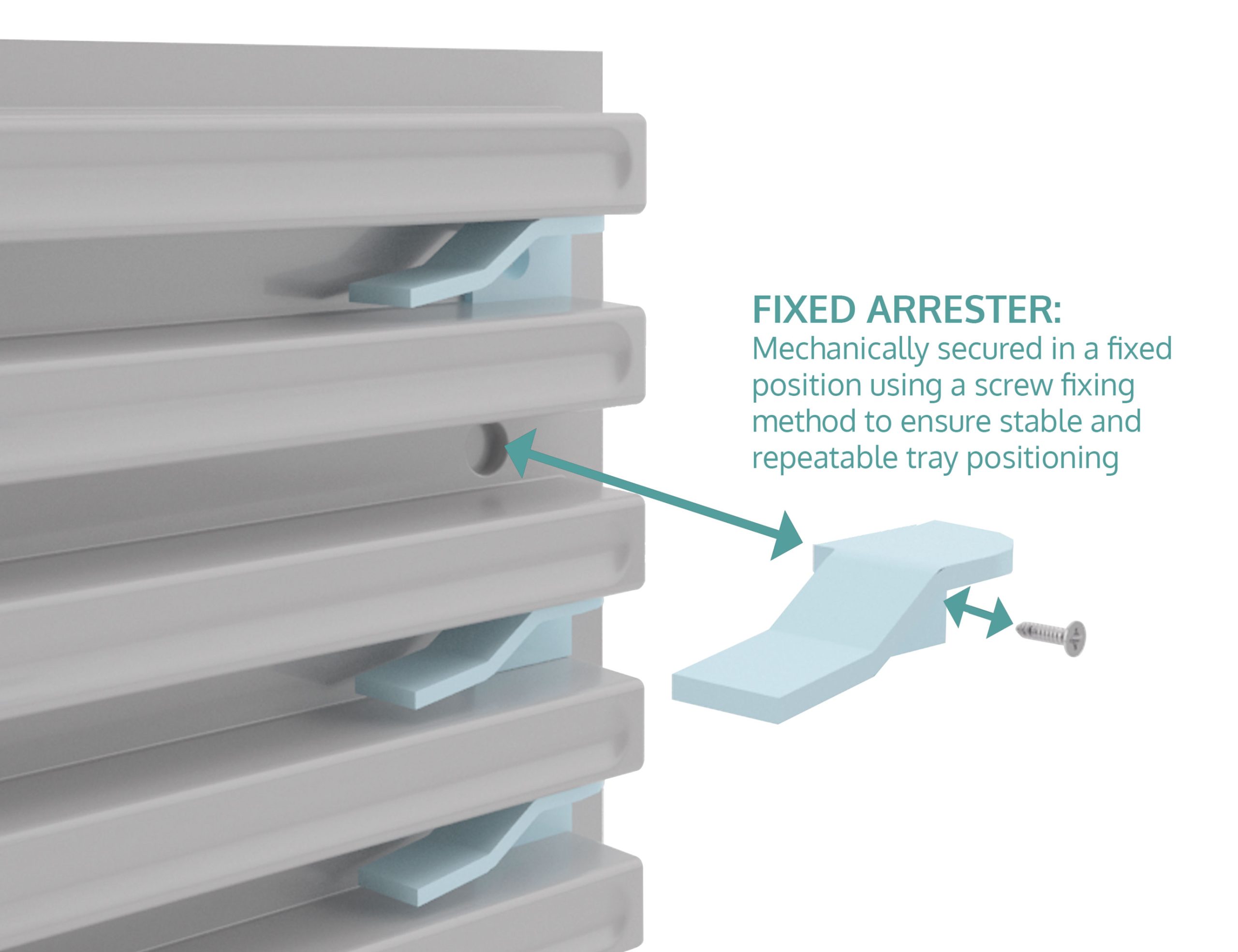

FIXED ARRESTER

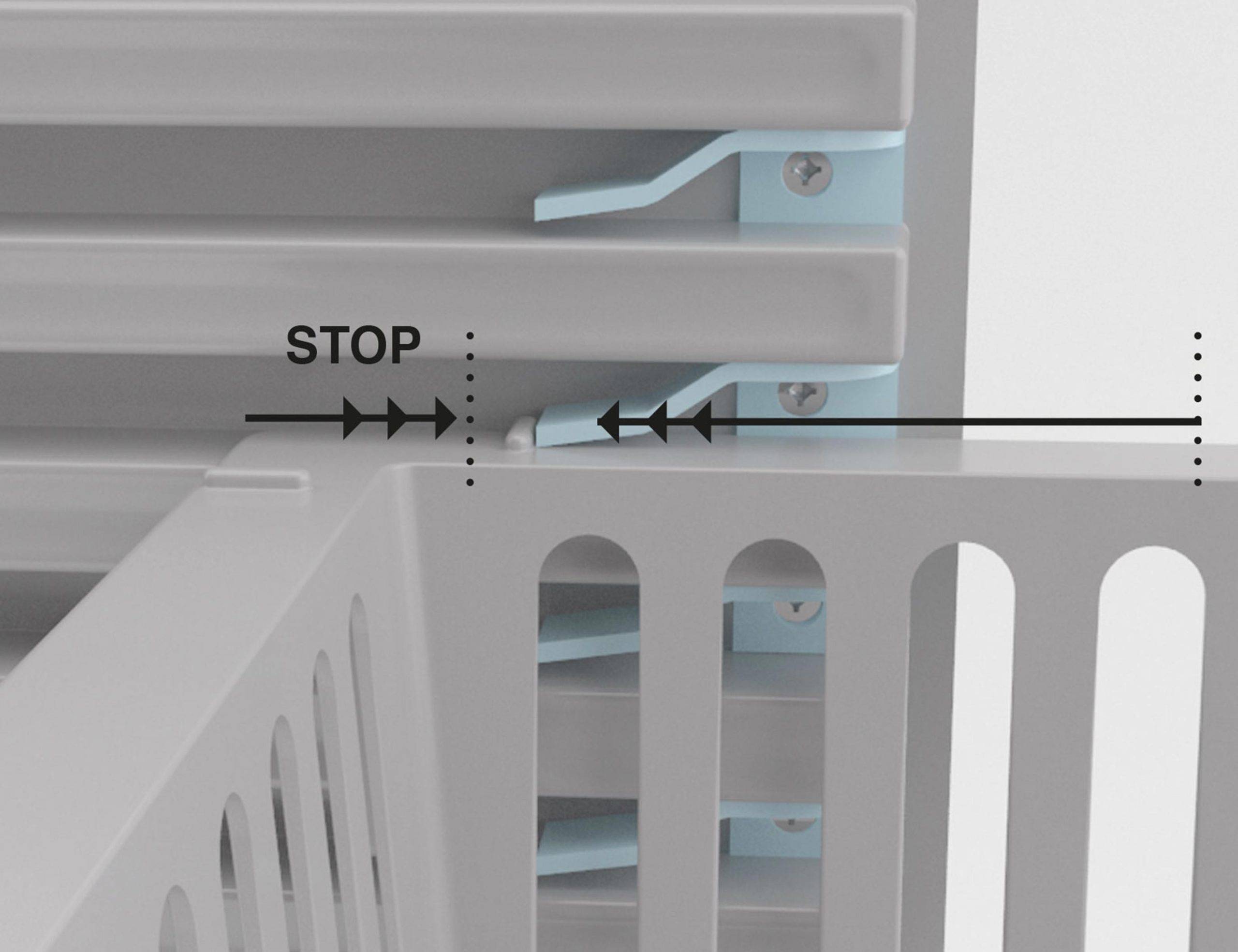

Medstor fixed arresters deliver a secure positive stop, reducing the risk of accidental tray removal.
Also see
Polycarbonate trays
A material chosen for its exceptional strength, durability, and suitability for demanding healthcare environments.
ABS trays
Medstor liner systems are designed to work seamlessly with our tray solutions, creating a highly efficient and fully integrated storage environment.
Tray accessories
Our card holders provide clear, durable labelling options that help staff quickly identify tray contents, stock levels, and replenishment requirements.
